508–916mm 20–150kN 7 Sheaves MC Nylon Large Diameter Stringing Blocks Cable Pulling Blocks for Transmission Line Installation
508-916mm 20-150kN 7 Sheaves MC Nylon Large Diameter Stringing Blocks Cable Pulling Blocks for Transmission Line Installation
Product Overview

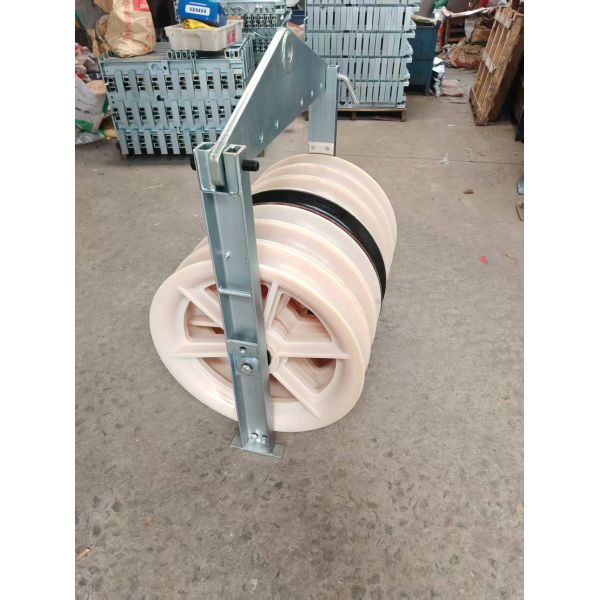

The 7 Sheaves MC Nylon Large Diameter Stringing Blocks are engineered for transmission line construction, overhead conductor stringing, and cable pulling applications. Featuring 508-916mm large diameter sheaves, 20-150kN rated load capacity, and a 7-sheave structure, these cable pulling blocks deliver stable support for multi-conductor stringing operations. The MC nylon sheaves significantly reduce conductor wear and friction during extended pulling tasks.
Common Challenges in Power Line Construction
- High conductor bending stress during pulling operations
- Conductor surface damage caused by excessive friction
- Unstable pulling performance in multi-conductor stringing
- Uneven load distribution during overhead line installation
- Low efficiency in long-distance transmission line projects
Root Causes
- Small sheave diameter increasing bending stress
- Single sheave blocks unsuitable for bundle conductor work
- Unsuitable sheave material causing conductor wear
- Insufficient load capacity for heavy-duty projects
- Poor block configuration reducing pulling stability
Engineering Solutions
The 7 Sheaves MC Nylon Stringing Blocks effectively address these challenges through:
- 508-916mm large diameter design – reduces conductor bending stress
- 7 sheaves structure – improves multi-conductor stringing stability
- MC nylon sheaves – reduce cable wear and surface friction
- 20-150kN rated load – suitable for heavy-duty power line construction
- Customizable design – adapts to different conductor and project requirements
Technical Specifications
| Parameter |
Value |
Engineering Significance |
| Product Name |
7 Sheaves Stringing Blocks |
For multi-conductor stringing |
| Sheave Diameter |
508-916 mm |
Reduces conductor bending stress |
| Rated Load |
20-150 kN |
Suitable for heavy-duty pulling |
| Number of Sheaves |
7 Sheaves |
Supports bundle conductor installation |
| Sheave Material |
MC Nylon |
Reduces conductor wear |
| Applicable Conductor |
ACSR400-720 / Customizable |
Suitable for transmission line projects |
| Structure Type |
Multi Sheave |
Improves load distribution |
| Application |
Transmission Line / Cable Pulling |
Used for power construction |
Operating Principle
The stringing block guides conductors through seven rotating MC nylon sheaves during pulling operations. The large diameter sheaves minimize bending stress on the conductor, while the 7-sheave structure ensures even load distribution, enhancing stability during multi-conductor stringing. The MC nylon material significantly reduces friction and protects the conductor surface throughout the operation.
Applications
- Transmission line construction
- Overhead conductor stringing
- Power line installation
- Multi-conductor pulling projects
- High-voltage transmission projects
- Long-distance cable pulling work
Selection Guidelines
Based on conductor size:
For medium conductors, choose 508mm or 660mm sheaves.
For larger conductors, choose 822mm or 916mm sheaves.
Based on load requirement:
For standard projects, 20-60kN may be suitable.
For heavy-duty projects, choose 100-150kN rated load.
Based on conductor protection:
Choose MC nylon sheaves to reduce cable wear and protect the conductor surface.
Based on construction method:
For bundle conductor stringing, 7 sheaves provide better stability and load distribution.
Frequently Asked Questions
Q1: Why choose 7 sheaves stringing blocks?
A: 7 sheaves are ideal for multi-conductor stringing and provide superior stability during power line construction operations.
Q2: What is the advantage of MC nylon sheaves?
A: MC nylon sheaves significantly reduce friction and help protect the conductor surface from wear and damage.
Q3: Why use large diameter stringing blocks?
A: Large diameter sheaves reduce conductor bending stress and improve overall pulling performance and efficiency.
Q4: Can the sheave diameter be customized?
A: Yes. The sheave size, groove size, material, and configuration can be customized according to specific project requirements.
Q5: What applications are these cable pulling blocks suitable for?
A: They are suitable for transmission line construction, cable pulling, overhead conductor stringing, and power line installation projects.
